Introduction

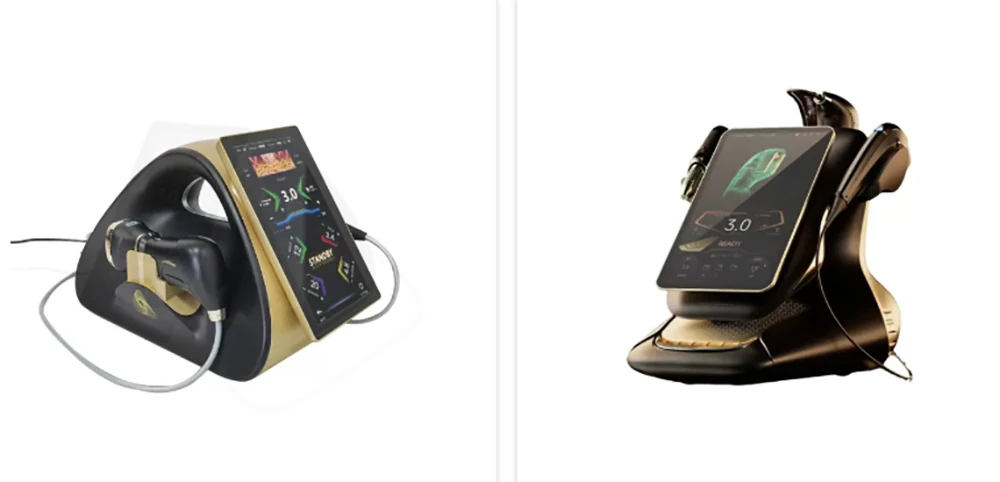

Demand for non-invasive aesthetic treatments continues to grow, especially for technologies that can deliver visible lifting and tightening results without surgery or downtime. One of the technologies driving this trend is the HIFU machine, which uses high-intensity focused ultrasound to tighten skin, lift facial contours, and reduce body fat. Two popular HIFU platforms for facial lifting and body slimming are the 3 in 1 RF+EMS+HIFU 360 MAX 25D HIFU Machine and the 22D MAX HIFU Machine. We compare the two HIFU platforms to help clinic owners, dermatologists, and MedSpas determine which one best fits their needs.

Market Data and Industry Context

According to industry market research, the global HIFU device market was valued at approximately $2.5-4.5 billion in 2025, with projected growth at a compound annual rate of 7.8% to 9.5% through 2032. The market is expected to reach $4.2-4.8 billion USD by 2030-2032. Facial rejuvenation currently accounts for about 55% of market share, while body contouring applications are the fastest-growing segment.

Data Source: Global Medical Aesthetics Industry Report, 2025 – Source URL: www.grandviewresearch.com/industry-analysis/aesthetic-medicine-market

What Is a HIFU Ultrasound Machine? Definition and Mechanism

A HIFU ultrasound machine uses High-Intensity Focused Ultrasound to create precise thermal coagulation points at depths ranging from 1.5mm to 18mm. Unlike lasers that target skin surface pigment or basic RF that heats superficially, a HIFU machine bypasses the epidermis entirely, converging energy at a focal point deep within the dermis, SMAS fascia, or fat layer. At the focal point, temperature reaches 65°C to 70°C, causing immediate collagen contraction and triggering long-term neocollagenesis over 2 to 3 months.

The most significant advantage of a professional ultrasound HIFU beauty machine is its ability to reach the SMAS layer at 4.5mm depth. This is the same tissue layer addressed in surgical facelifts, making HIFU machine technology the only non-invasive modality capable of producing true lifting rather than simply tightening superficial skin.

3 in 1 360 MAX 25D HIFU Machine: Technical Specifications

The 3 in 1 RF+EMS+HIFU 360 MAX 25D HIFU Machine integrates three core technologies: HIFU for deep coagulation, 6.78MHz RF for dermal heating via Joule effect, and EMS microcurrent for muscle firming and cellular stimulation.

HIFU Technology: Uses patented ultra-pulse shockwave (V-HIFU and P-HIFU) to generate high-energy focused ultrasound. Energy passes rapidly through the epidermis, creating a mesh of coagulation points in the dermis and fascia layer at 65°C, stimulating fiber contraction and collagen regeneration.

RF Sine Wave Technology: The 6.78MHz radiofrequency penetrates the epidermis directly to the dermis in sinusoidal wave output, causing polar water molecules to generate heat through high-speed friction. Tissue reaches approximately 45°C, causing collagen fibers to contract and activating wound healing mechanisms. RF also improves subcutaneous blood circulation and oxygen supply.

EMS Microcurrent Pulse Technology: Targeted microcurrent pulses stimulate ion channels on the cell membrane, promoting glucose and oxygen transport into cells and improving mitochondrial function through a cell charging mechanism. EMS stimulates actin-myosin connections, promotes isometric muscle contraction, reduces chronic inflammation damage, and breaks the inflammatory aging cycle.

Handle System: The 360 MAX 25D includes three handles. The 15RS handle (cartridges 1.5/2.0/3.0/4.5/6.0/9.0/13.0mm) treats large-area facial lifting with point and line modes. The 36RS handle (1.5/3.0/4.5mm) provides refined anti-aging for specific areas with dot ring and line ring modes using micro-pulse ultrasound synergistic technology. The 18RS handle (6.0/8.0/10.0/13.0/16.0/18.0mm) performs body sculpting with circle and multi-row modes, featuring dual high-speed brushless motors.

Treatment Modes: Single-mode care for basic treatment. MP mode delivers 417 points per single shot for dense, even heating with lower peak energy and reduced pain. Dot mode delivers 17 points per shot for focused treatment. AI spiral care combines focused ultrasound with 6.78MHz RF synchronously, with energy effect area reaching 40mm x 50mm for rapid large-scale fat elimination. Multimodal care superimposes micro-pulses for even energy dispersion across target layers.

22D MAX HIFU Machine: Technical Specifications

The 22D MAX HIFU Machine for Facial Lifting and Body Slimming combines multi-line HIFU with RF Lipo technology. Unlike the 3-in-1 platform, this HIFU device focuses on dual-modality treatment.

Core Technology: Multi-line HIFU delivers high-intensity focused ultrasound at multiple depths. Lipo Slim technology uses radiofrequency energy to heat deeper skin layers, enhancing fat metabolism and stimulating collagen regeneration. The synergy of both technologies provides comprehensive treatment for skin tightening, body contouring, and anti-aging.

Functional Applications: Multi-line HIFU technology helps firm and lift the skin while improving facial contours and reducing sagging. The treatment also supports collagen stimulation to reduce the appearance of fine lines and wrinkles. For body contouring, radiofrequency technology can help target fat accumulation in areas such as the abdomen, thighs, and buttocks.

Handle System: The multi-line handle offers point mode and MP mode, delivering up to 13 lines per shot, adjustable from 2 to 13 lines. The RF LIPO handle offers point mode, MP mode, and circular mode, delivering up to 22 lines per shot, with integrated 6.78MHz RF function. The RF LIPO handle features square mode for flat body surfaces and circle mode for curved areas.

Depth Options: Cartridges range from 1.5mm to 18mm, treating face, neck, chest, arms, hips, legs, and abdomen. The manufacturer claims immediate tightening and shaping effects lasting 18 to 24 months per treatment. For body applications with 18D configuration, fat tissue is destroyed immediately, with body circumference reduction of 2-6cm immediately after treatment, continuing to improve over 8-12 weeks as fat metabolism completes.

Technical Comparison Table

FAQs

Q1: For high-end clients who are more sensitive to pain, how does this HIFU device strike a balance between comfort and therapeutic effect?

A: We have adopted the latest micro-pulse technology, or MP mode, which breaks traditional large-spot energy into much finer micro-droplets. While ensuring sufficient total thermal energy to trigger collagen regeneration, this technology reduces the instantaneous stimulation on nerve endings. This helps reduce the sharp discomfort often associated with traditional HIFU treatments, replacing it with a milder sensation of warmth and pressure.

Q2: We are a medical aesthetics chain with high foot traffic, but many clients are skeptical about non-invasive anti-aging treatments. How can HIFU help us build client trust quickly?

A: Many customers notice significant lifting and tightening effects—particularly within the SMAS layer—shortly after undergoing treatment with an ultrasonic HIFU beauty device. This immediate feedback significantly lowers the trust barrier for new clients, allowing them to transform their initial skepticism into firm confidence without having to wait weeks to see results.

Q3: As a dermatology clinic, we already have RF and laser devices. Will introducing a HIFU device conflict with our existing protocols? How should we design combination treatment plans?

A: Rather than conflicting with your existing protocols, HIFU can help create a layered anti-aging approach covering the epidermis, dermis, and SMAS layer. We recommend positioning HIFU for deeper structural remodeling, with 4.5mm and 3.0mm cartridges targeting the SMAS and deep dermis. RF treatments can be used for collagen densification within the dermis, while laser or IPL treatments address pigmentation and skin texture at the epidermal level.

These three modalities are typically performed in stages with intervals of 2–4 weeks between treatments. This helps avoid excessive energy overlap while allowing clinics to provide a one-stop layered anti-aging solution for patients, improving both patient lifetime value and overall equipment utilization.

Conclusion

The choice between the 3 in 1 RF+EMS+HIFU 360 MAX 25D HIFU Machine and the 22D MAX HIFU Machine for Facial Lifting and Body Slimming largely depends on clinic needs and treatment priorities. The 360 MAX 25D delivers superior patient comfort through 417-point MP mode, comprehensive anti-aging through triple-modality integration (HIFU, RF, EMS), and faster treatment times. It is well suited for high-volume practices seeking maximum refinement.

The 22D MAX focuses on core HIFU and RF functionality with a simpler operating system and treatment workflow. It is a practical option for clinics that are newer to HIFU treatments or working with more limited equipment budgets.

Both platforms offer non-invasive lifting, zero downtime, and results lasting 18-24 months. As the global ultrasound HIFU beauty machine market grows at 7.8-9.5% annually toward $4.8 billion by 2032, practices investing in either platform position themselves to meet growing consumer demand for effective non-surgical anti-aging solutions.
